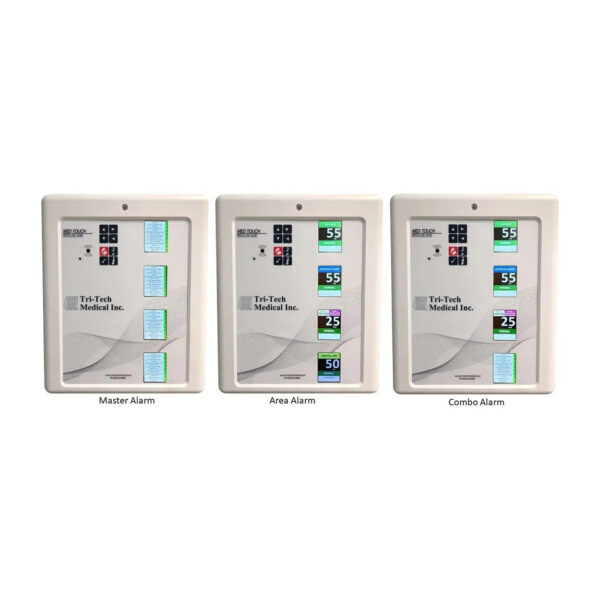

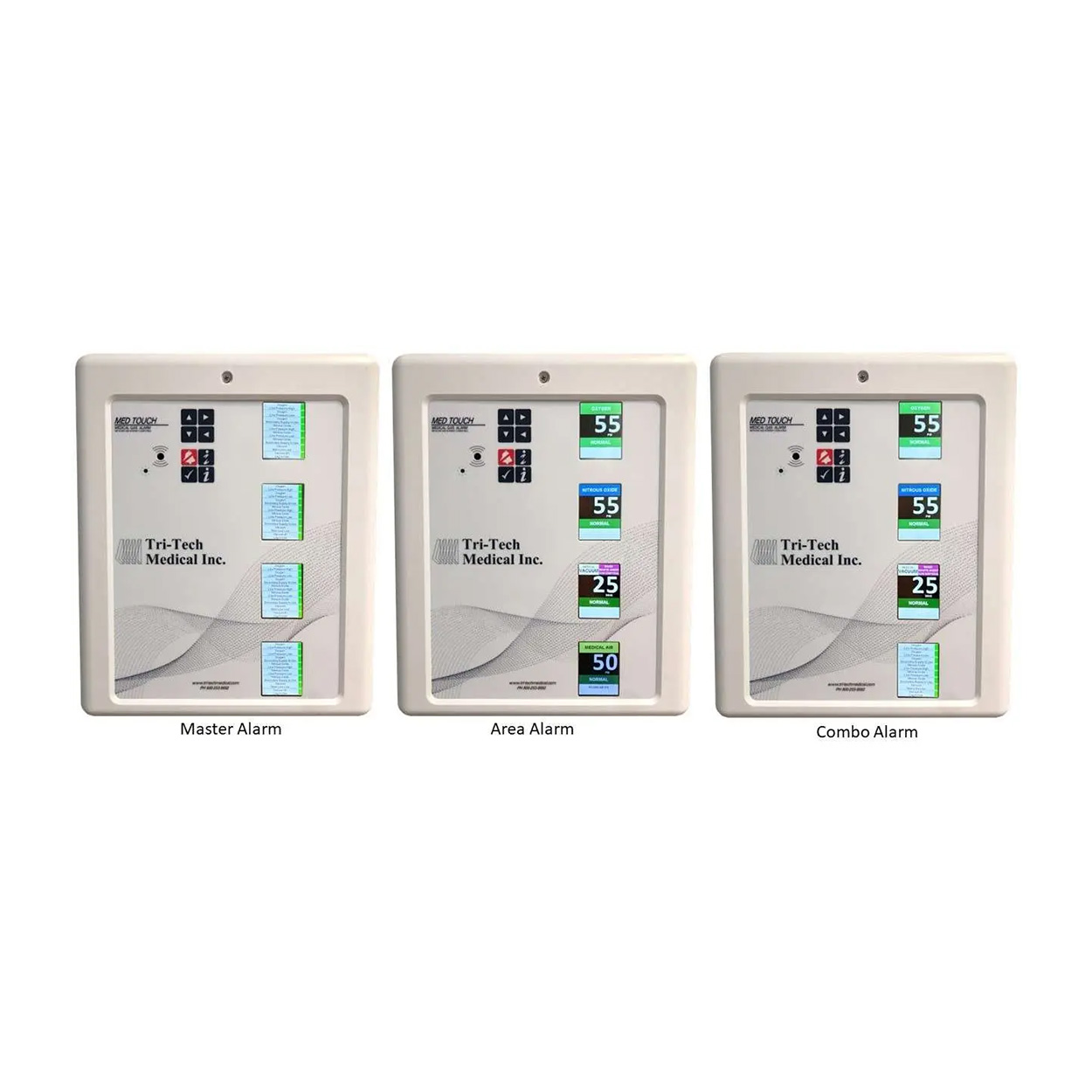

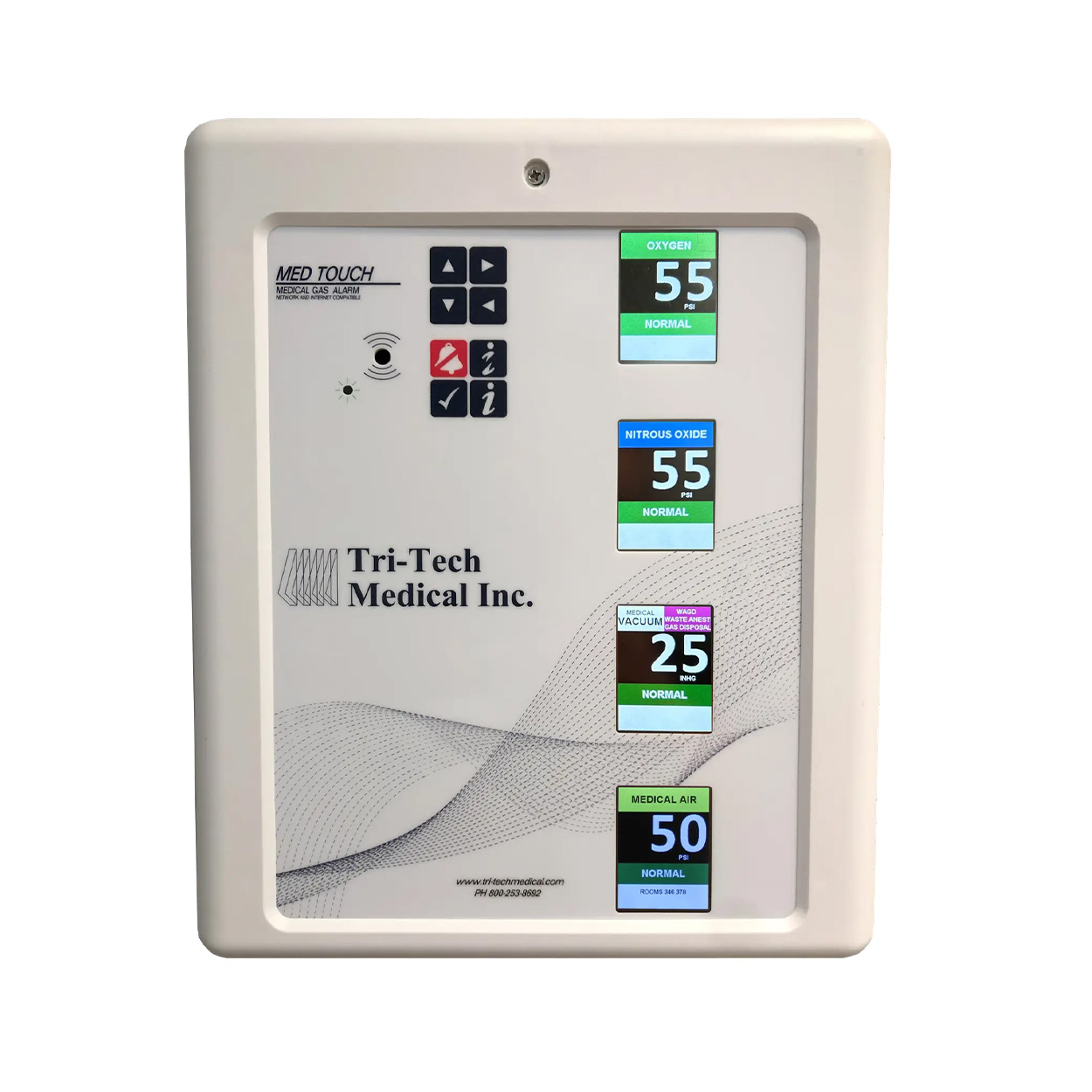

Medical Gas Area Alarm Panel
The Tri‑Tech Medical Gas Area Alarm Panel digitally monitors and displays gas pressure and vacuum levels for up to 16 medical gas services. Featuring a 2.85″ LCD touchscreen, ETL listing to UL‑1069 and CSA‑C22.2 #205 compliance, and NFPA 99 certified, this panel offers intuitive programming without tools. Transducers and DISS risers are included, and the panel includes internal transducer mounting options plus dry contacts for system-wide alerts.
- Monitors gas pressure/vacuum for up to 16 services
- 2.85″ LCD touchscreen — no tools needed for setup
- ETL listed to UL‑1069 & CSA‑C22.2 #205
- NFPA 99 compliance for medical gas systems
- Includes transducers and gas‑specific DISS risers
- Internal or remote transducer mounting (up to 5,000 ft)
- Dry contacts for remote alarm integration
- User-programmable high/low setpoints and alarm history
- Hinged access panel with lanyards and color‑coded gauges
- Gas Channels: Supports up to 16 services per panel
- Display: 2.85″ color touchscreen, showing pressure ±1 psi resolution
- Power Input: 120‑240 VAC, 50‑60 Hz (integral transformer)
- Transducer Input: 1 psi/in Hg via DISS and 4–20 mA options
- Remote Transducer Distance: Up to 5,000 ft via twisted‑pair
- Materials: Steel enclosure, hinged poly gauge window
- Compliance: ETL/UL‑1069, CSA, NFPA 99
At VASS, we are committed to ensuring your equipment operates at peak performance. If you need assistance with setup, troubleshooting, or routine maintenance, our team is here to help.
Getting Started
Refer to the user manual included with your equipment for setup instructions.
Check the Downloads tab for available manuals, guides, and troubleshooting documentation.
Need Help?
📞 Call Us: 800-498-5575
📧 Email Support: info@vasservice.com
🔧 Schedule a Service: Contact our team to request maintenance or repairs.
For additional resources, visit our Video Support Library, where you can find installation guides and service walkthroughs.
